However, in the PASSLOCK system, the resistor has been placed inside the ignition switch, instead of the key. See the GM V.A.T.S page for more information. To remotely start a car with this feature, you must bypass the PASSLOCK system. There are two methods of doing so.. The first, is to permanently bypass this system.

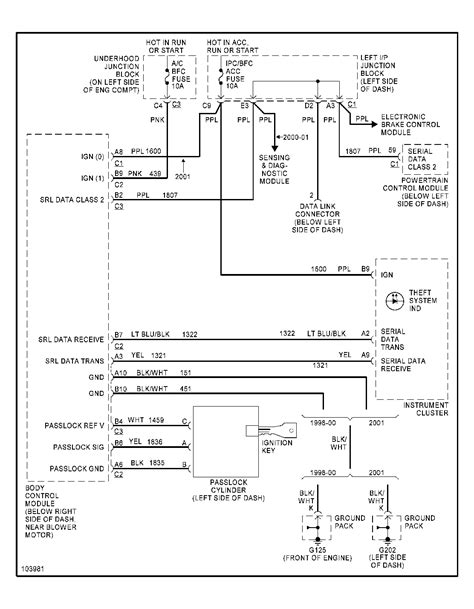

Passlock 2 Wiring DiagramNOTE: Never connect the wiring on the Passkey or Passlock system without first setting the dipswitch . WIRING DIAGRAM. Passlock ll also uses a R-Code, but rather than going through the PASSLOCK I WIRING DIAGRAM 2-Pin Connector for the On-Board Ignition Two Relay. Resistance Code section of this manual.) Passlock I Wiring Diagram. Harness 1.
Passlock wiring diagram — Ricks Free Auto Repair Advice ...Eautorepair.net redraws factory wiring diagrams in color and includes the component, splice and ground locations right in their diagrams. That saves a lot of time because you don’t have to refer back to the component locator or circuit locations. Alldatadiy.com, on the other hand, uses the factory diagrams.
Passkey 3 Wiring Diagram Gm VehiclesThe GM Passlock System is a key-based, fuel shutdown, anti-theft system Passlock I Wiring Diagram This wire is located in the vehicle's three-wire Passlock. GM PASS- Key III Plus, bypass for vehicles equipped with the new style hybrid Passlock . chart below will tell you by vehicle which wiring diagram to use.
Gm Passlock Security FixThis is the Gm Passlock Security Fix of a pic I get via the 2002 Cavalier Stereo Wiring Diagram package. You can save this photo file to your own pc. Please right click on the image and save the pic. We also have some more pics linked to 2002 Cavalier Stereo Wiring Diagram, please see the image gallery below, click one of the graphics, then the picture will be displayed large, as shown above.
556L General Motors Passlock Interface ModulePasslock system (either Passlock I,Passlock II or alter-nate). You can determine which type of system is being used by referencing the Vehicle Application Guide section in this manual. The GM Passlock System is a key-based, fuel shutdown, anti-theft system. The Passlock system requires that the key cylinder be mechanically turned using a key.
GM antiClick here to see the trouble codes for a PassLock system. Click here to see a typical PassLock wiring diagram. IF you have a PassKEY system, click here to see the reset procedure. GM anti-theft systems, vehicle theft deterrent, passkey, passlock, VATS, how they work, how to fix, and how to reset. GM has four generations of anti-theft systems.
Passlock 2 bypass without modulePasslock 2 bypass without module ! - All passlock 2 system can be bypassed with 2 diodes. Cheap, easy and works all the time!Here's how to do it. You can use a relay if you dont want to lose your passlock 2 permanentl
DISABLE PASSLOCK SYSTEM ON 2003 iMPALASOURCE: gm passlock security system how to disable. Wiring diagrams can be found online, however i believe you can re-learn the key by leaving it inside the ignition tumblen and switch it to accesory. Then disconnect the b attery for about ten minutes and then try starting the car without taking the key out. Posted on May 03, 2009
If you need a wiring diagram... | SAlso to anybody scared of messing with the factory PassLock system, don't be. All you do is measure the stock resistance of the ignition with an ohm meter, then dial-in the PassLock bypass module for the same resistance, and last hook up the miscellaneous wires (power, ground, etc.) Anybody with simple 12V electrical skills can do it.
