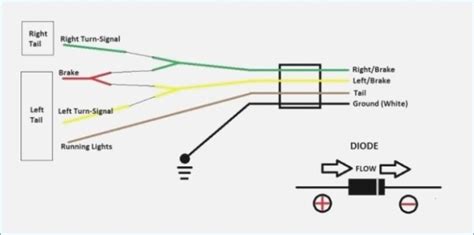

4-Pin Flat Connector. At a minimum, all trailers need at least 4 functions: Tail lights, Brake lights, Left & Right signals. 4 wires will give these functions, so the simplest scheme is a 4-pin connector. The most common 4 wire connector is the 4-Pin Flat Connector as shown here.
Trailer Wiring Diagram4-Way trailer connectors are typically used on small trailers such as boat, snowmobile, utility and other trailers that that do not use brakes. As the name implies, they use four wires to carry out the vital lighting functions. The four wires control the turn signals, brake lights and taillights or running lights. They also provide a wire for a ground connection. 4-way trailer connectors are ...
7 Pin Trailer Wiring Diagram With Brakes | Wiring Diagram7 Pin Trailer Wiring Diagram With Brakes – Amazing 7 Wire Trailer – 7 Pin Trailer Wiring Diagram With Brakes. Wiring Diagram comes with a number of easy to adhere to Wiring Diagram Instructions. It really is supposed to assist all of the typical person in developing a correct program. These directions will likely be easy to grasp and apply.
Four Pin Trailer Wiring InstallFour-Wire System. With this system, you have four wires that work together with the vehicle’s electrical system via a plug connector. The wires are colored differently, using white for ground, green for right turns and brakes, yellow for left turns and brakes, and brown for the tail lights.
Trailer Wiring Diagram For 4 Way, 5 Way, 6 Way and 7 Way ...Trailer Wiring Diagrams 4 Way Systems. 4 way flat molded connectors allow basic hookup for three lighting functions; right turn signal / stop light (green), left turn signal / stop light (yellow), taillight / license / side marker (brown) and a ground (white).
Trailer Wiring Diagrams | etrailerTrailer Wiring Diagrams Trailer Wiring Connectors Various connectors are available from four to seven pins that allow for the transfer of power for the lighting as well as auxiliary functions such as an electric trailer brake controller, backup lights, or a 12V power supply for a winch or interior trailer lights.
How to Wire Lights on a Trailer | Wiring Diagrams ...Above we have describes the main types of trailer wiring diagrams. Below is the generic schematic of how the wiring goes. 4 pin trailer wiring diagram. This type of connector is normally found on UTVs, ATVs and trailers that do not have their own braking system. Note, that this type of 4-pin connector is less common, that 4-pin flat connector.
Tips for Installing 4Buy a 4-pin wiring kit with wires at least twenty feet in length, so it's long enough for your trailer. The most common wire thickness for a trailer is 16 gauge, but I bought thicker wiring for added durability. Depending on the size of your trailer and the number of lights, you might want to check on the Internet for the recommended gauge for your specific trailer.
