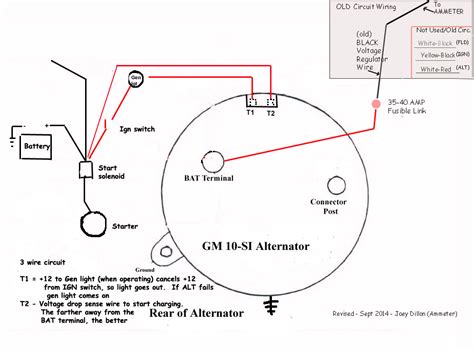

*This diagram shows the simple wiring diagram for negative ground Delco SI series alternators.* The ignition switch is most commonly powered from the starter battery stud, but source may vary depending on application. With key on power is then transferred through the no charge indicator light to the #1 spade on the alternator regulator connection.
Wiring up the GM 10SI AlternatorSome other tidbits available from AC Delco for wiring up a 10SI, is wiring package 1870921 (for those 6 to 12volt conversions). This contains the terminal connector AND an extra resistance wire pigtail to connect to the ignition system (don't use a ballast resistor if you use a resistance wire).
Wiring a Delco (GM) AlternatorWiring an alternator . This diagram shows how to wire a Delco (GM) internally regulated 3-wire alternator.This particular model (10SI, used in the 1970s and early 80s) is the one you'll find on the generation of GM cars most often used in demolition derbies.
Delco 12si Alternator Wiring Diagram Sampledelco 12si alternator wiring diagram – Si Alternator Wiring Diagram New Simple Wiring Diagram Alternator Best Wiring Diagram for Ac Delco. File Type: JPG. Source: rivercottagenews.net. Collection of delco 12si alternator wiring diagram. Click on the image to enlarge, and then save it to your computer by right clicking on the image.
Ac Delco 4 Wire Alternator Wiring Diagram | Free Wiring ...Name: ac delco 4 wire alternator wiring diagram – Cs130 Wiring Ac Delco Alternator 4 Wire 3 Gm 10si 2 Diagram Beauteous; File Type: JPG; Source: releaseganji.net; Size: 200.98 KB; Dimension: 1360 x 1056
Delco Remy Alternator Wiring Diagram 4 Wire | autocardesignDelco Remy Alternator Wiring Diagram 4 Wire– wiring diagram is a simplified agreeable pictorial representation of an electrical circuit.It shows the components of the circuit as simplified shapes, and the knack and signal links with the devices.
10si Wiring Diagram#gm alternator wiring diagram. #delco 10si. 10Si Alternator Operating Principles. A typical 10Si series wiring diagram is illustrated in Figure 3. The basic operating principles are explained as follows. The No. 2 terminal is connected to the battery, and the base-emitter of transistors TR4 and TR1 is connected to the battery through resistor ...
Delco Remy 10si Wiring DiagramHOUSING AND COLLAR INSTALLATION IN 10SI 11SI ALTERNATOR DELCO REMY 10SI, 11SI, 12SI OR BOSCH K1 ALTERNATORS WITH 11SI. 10SI and 12SI are Delco Remy model number designations, but not part numbers. assembly positions provides for proper exit of the wiring from the alternator. The 10SI has three terminals (including those with a 1 wire regulator).
