Assortment of volt amp meter wiring diagram. A wiring diagram is a simplified traditional photographic representation of an electric circuit. It reveals the elements of the circuit as simplified forms, and the power and signal connections between the devices.
How To Wire Ammeter For DC and AC Ampere MeasurementThe DC and AC ammeter wiring method is same but for DC current you will use a DC ammeter and for AC current measurement we can only use the AC ampere meter. ammeter wiring diagram I hope now you will completely understood the ammeter wiring, In my incoming post i will share with you a diagram that how to wire ammeter for high load with CT coil ...

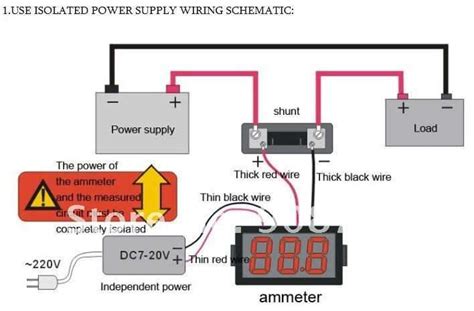

Popular Chinese Dual Digitalwiring diagrams 2 and 3 at the end of this article. Note 2: Where the Load power source is greater than 30 volts (and less than 100v), then a separate isolated power source should be obtained to provide meter power. Refer to the section below re Isolated Meter Power and wiring diagram 1 at the end of this article.
How to wire digital dual display voltThank you for posting the wiring diagram; I need it! I just received one of these fellahs. Purpose is to measure DC volts supplied to my model rail track. It would be nice to get a reading of amps supplied too. I connected up as per your diagram. In my situation the power supply and the load to be read are one and the same, ie the 2 rails of ...
DC Amp and Volt Meter Wiring | Missouri Wind and SolarIf your meter is over 15 amps, you will need a shunt bar (refer to the wiring diagram above). Troubleshooting DC Meter Issues Amp Meters: If the needle on the meter is a negative reading, switch the sense wires between the meter and shunt bar.
DsnThere is also no common connection scheme or even wire Model DSN-VC added wiring diagrams 2 and 3 at the end of this article. They say is can it be used up to 10 amps without a shunt, but I can't find wiring diagram. I am trying to wire into 50 watt led light. I know the small.Apr 16, · wiring of amp and volt meters. wiring of amp and volt meters.
How to Wire an Auto Meter Amp Gauge | It Still RunsUse the wiring diagram and test light or multi-meter to locate the positive wire from the alternator to the fuse block. Then locate any wire that has power with the ignition off. Use the flashlight or drop light to see the wiring under the dash.
How to Wire An Ammeter and ShuntBought an ammeter and shunt from China with no instructions how to wire it? I'll show you how. In this video, I show how to properly wire an ammeter (amp gauge) with a shunt to measure amps.
Sizing a Shunt to a DC AmmeterShunts and meters must be matched by their ratings and calibration. For example, a 50 Amp/50mV meter requires a 50 Amp shunt; a 200 Amp/50mV meter requires a 200 Amp shunt. (Blue Sea Systems’ meters read full scale deflection at 50mV). How a Shunt Works. It is useful to think of water flow in a pipe when thinking about current flow in a wire.
