Towbar Bypass Relay Wiring Diagram

Wiring diagram for double relay on 12s socket. Check and test the fuses on all circuits. A diagram of a tow bar electrics bypass relay. Wiring diagrams an important aspect of towbar fitting is the wiring which is required to power either your trailer lights or caravan internal electrics.

How to Fit a Multiplex Bypass Relay

The 7-way smart bypass relay does the job of translating these signals and is a simple in-line fit between the towbar wiring and the vehicle loom. The fitter need not have an in depth understanding of the "multiplexed" system - the smart bypass relay's inbuilt microchip does all that. Fitting is very straightforward. How the relay works

7 Way Universal bypass Relay Wiring Diagram | autocardesign

7 Way Universal bypass Relay Wiring Diagram– wiring diagram is a simplified adequate pictorial representation of an electrical circuit.It shows the components of the circuit as simplified shapes, and the aptitude and signal associates amongst the devices.

Ryder Smart 7 Bypass Wiring Diagram

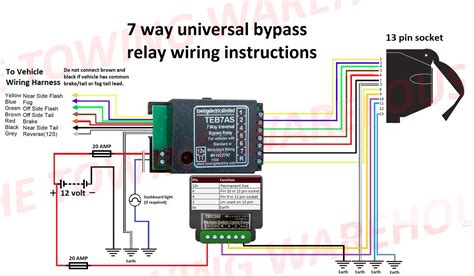

7 WAY UNIVERSAL BYPASS RELAY WIRING DIAGRAM Many modern cars have Multiplexed or Can bus wiring systems. Wiring systems such as Can bus were developed in order to be a simpler and more cost effective alternative to the traditional wiring harness. 7 Way universal bypass relay wiring diagram. Feb 01 Filed In: Wiring Diagrams.

7 WAY UNIVERSAL BYPASS RELAY WIRING DIAGRAM

7 WAY UNIVERSAL BYPASS RELAY WIRING DIAGRAM Many modern cars have Multiplexed or Can bus wiring systems. Wiring systems such as Can bus were developed in order to be a simpler and more cost effective alternative to the traditional wiring harness.

7 Way universal bypass relay wiring diagram | UK

7 Way universal bypass relay wiring diagram. Feb 01 2011 Filed In: Wiring Diagrams. Many modern cars have Multiplexed or Can bus wiring systems. Wiring systems such as Can bus were developed in order to be a simpler and more cost effective alternative to the traditional wiring harness.

Towing Bypass Relay TEC 3M, TEB7AS

TEC3M terminals (2) no connection, (4) to pin 9, (6) to pin 10 of the Towbar plug. Ground wires - Green/white to pin 13, Blue/white to pin 11, White to pin 3.

Smart Bypass Relay TEB7AS 7 way

Smart Bypass Relay TEB7AS 7 way. Our Part No. ETR02 Manufacturers Part No. TEB7AS. This is designed to be fitted on all modern cars with a negative earth. fitted with an audible buzzer and an outlet for a telltale light. Suitable for modern cars with canbus, multiplex or other bulb monitoring systems.

Wiring Diagrams

Wiring Diagrams An important aspect of towbar fitting is the wiring which is required to power either your trailer lights or caravan internal electrics. This is often overlooked when booking a towbar or can be difficult to understand exactly what your vehicle requires if you have none or very little knowledge.

PFJ01 BYPASS RELAY FITTING INSTRUCTIONS FITTING PROCEDURE

diagram below. If insulation displacement tap connectors are the preferred method of connection, use Red ... connect the single wire on the vehicle to the red wire on bypass relay. PFJ01 BYPASS RELAY FITTING INSTRUCTIONS. TEST PROCEDURE 1. Switch the vehicle engine off and remove the 10 Amp supply fuse to the PFJ01.
